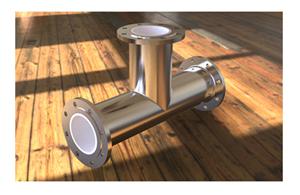

Ceramic Lined Tees

Brand : FOYO

Product origin : XIAMEN

Delivery time : 30 DAYS

Supply capacity : AS PER REQUEST

Applications:

Since ceramics have high hardness and excellent strength, Foyo developed ceramic lined Tees which are

widely used in the high corrosive and abrasive transmission systems for coal fired power plants, steel plants,

mining, chemical industry, petro-chemical, polysilicon and metallurgy.

The following working conditions are some typical medium in which ceramic lined Tees have been proved to have good performance.

Coal powder

Silicon powder

Fly ash

Mining slurry

Mining Slag

Coal washing

Strong acid slurry

Paper making Slurry

Technology Specification:

Type	Ceramic Lined Tees
Size	DN15-DN400(1/2”-16”)
Pressure Rating	PN10,PN16,PN25,PN40, PN63, PN100, CL150, CL300, CL600
Jacket Material	WCB, CF8, CF8M, CF3M, Hastelloy, Monel, Alloy 20, Titanium
Lining Material	ZrO2 Ceramics, Al2O3 Ceramics, Tungsten Carbide, Si3N4, SSiC
End Connection	Flange End, Butt Welding End, EN1092-1, DIN 2501, ASME B16.5

Product Tag Ceramic Lined Tees Lined Tees Ceramic Tees Ceramic Lined Ceramic Lined Tees Processing
