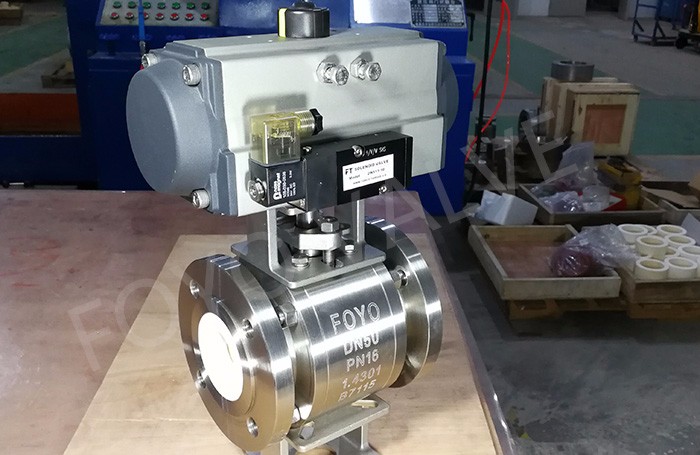

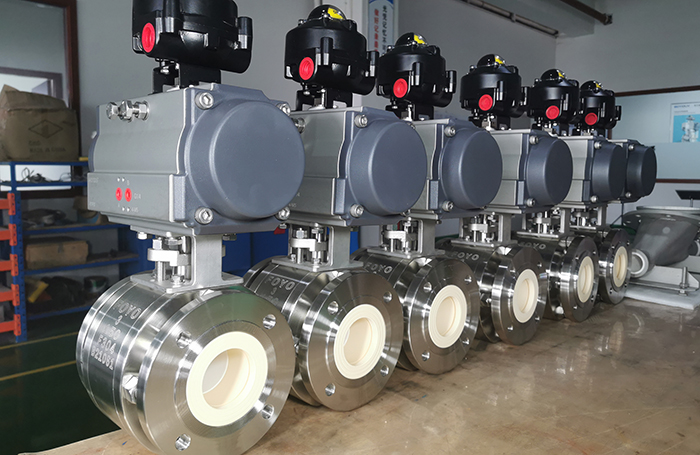

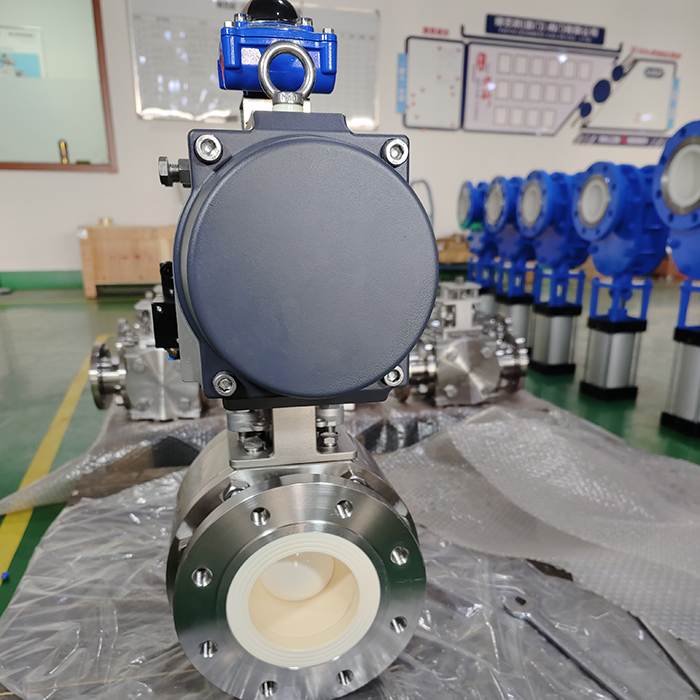

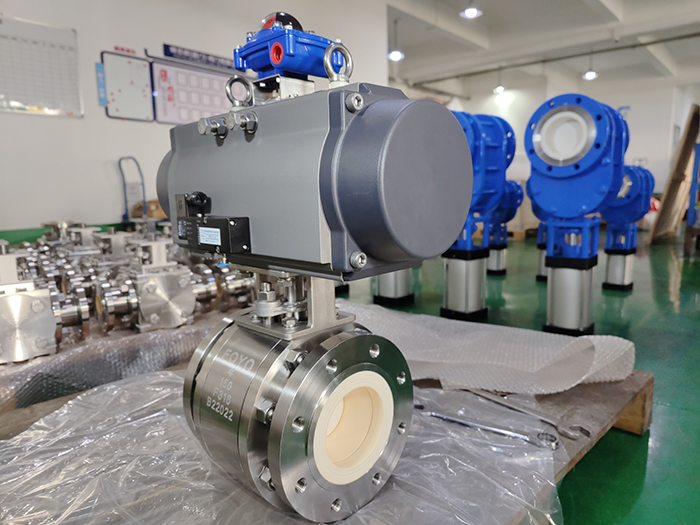

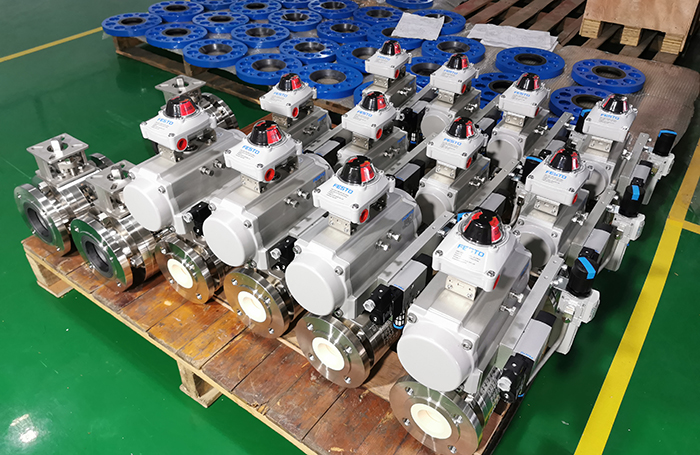

Pneumatic Ceramic Ball Valve

Brand : FOYO

Product origin : XIAMEN

Delivery time : 30 DAYS

Supply capacity : 300 PCS

Specification:


Type

Pneumatic Ceramic Ball Valve

Size

DN15-DN200(1/2”-8”)

Pressure Rating

PN10,PN16,PN25,PN40,CL150,CL300,JIS10K, JIS 20K

Body Material

WCB, A105, SS304,SS316,SS316L

Trim Material

ZrO2, 99% Al2O3,99.7%Al2O3,SSIC, STC, Si3N4

Actuation

Pneumatic Actuator


 FOYO Pneumatic ceramic ball valves have been widely used in all kinds of extreme corrosive and abrasive applications, such as Silicon Powder,Alumina Powder,Dry Coal Powder,Limestone Slurry,Gypsum Slurry,Plaster,Fly Ash,Mining Ore,Coal Powder Injection,Metallurgical dust,Thermal Power plant FGD lime slurry,Petroleum Solid Catalyst pneumatic conveying system ,TiO2 suspension with sulfuric acid,Ammonia solution with powder,Hydrochloric Acid,Liquid Chlorine,Bulk Material pneumatic conveying system, etc.
